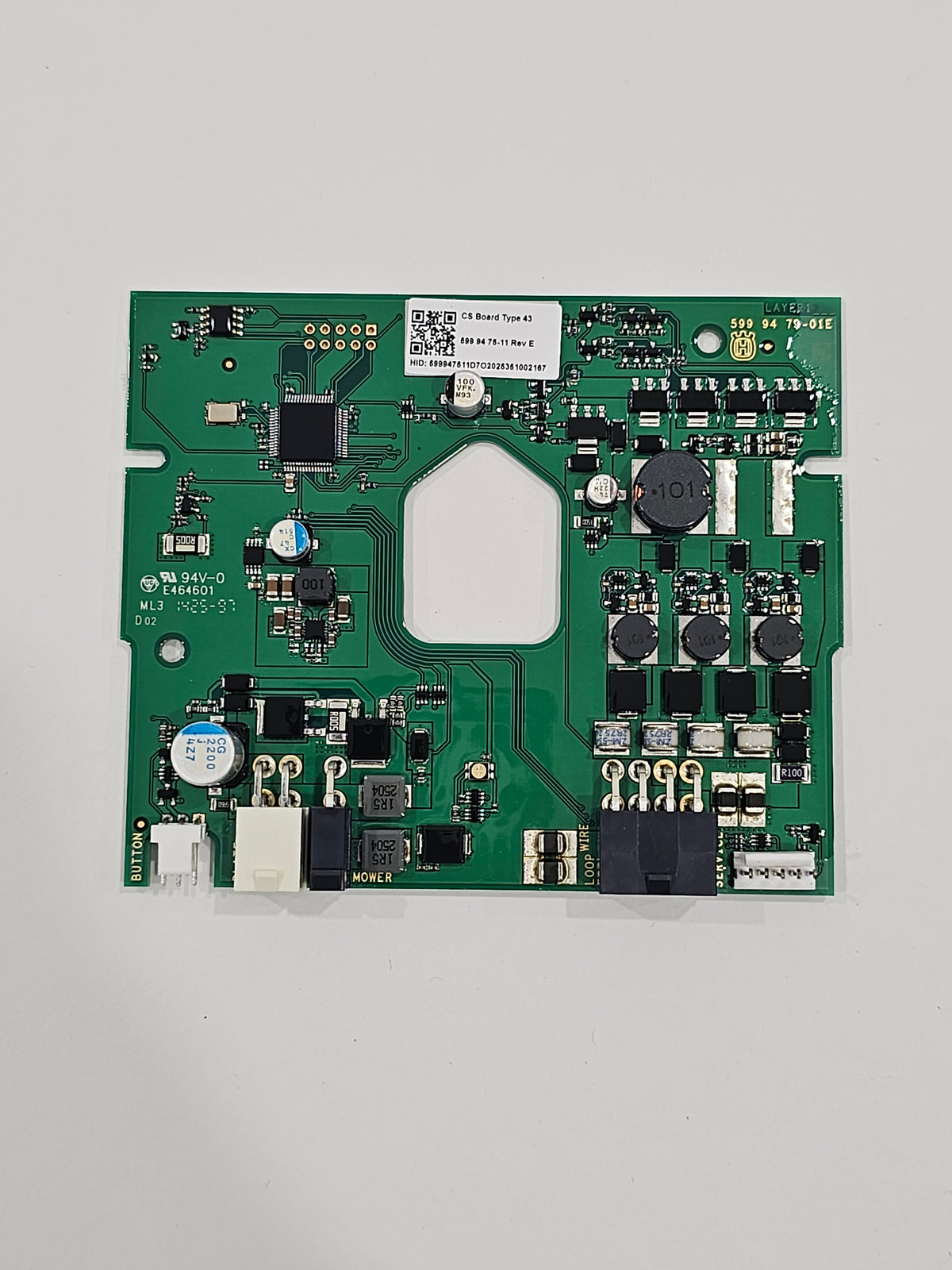

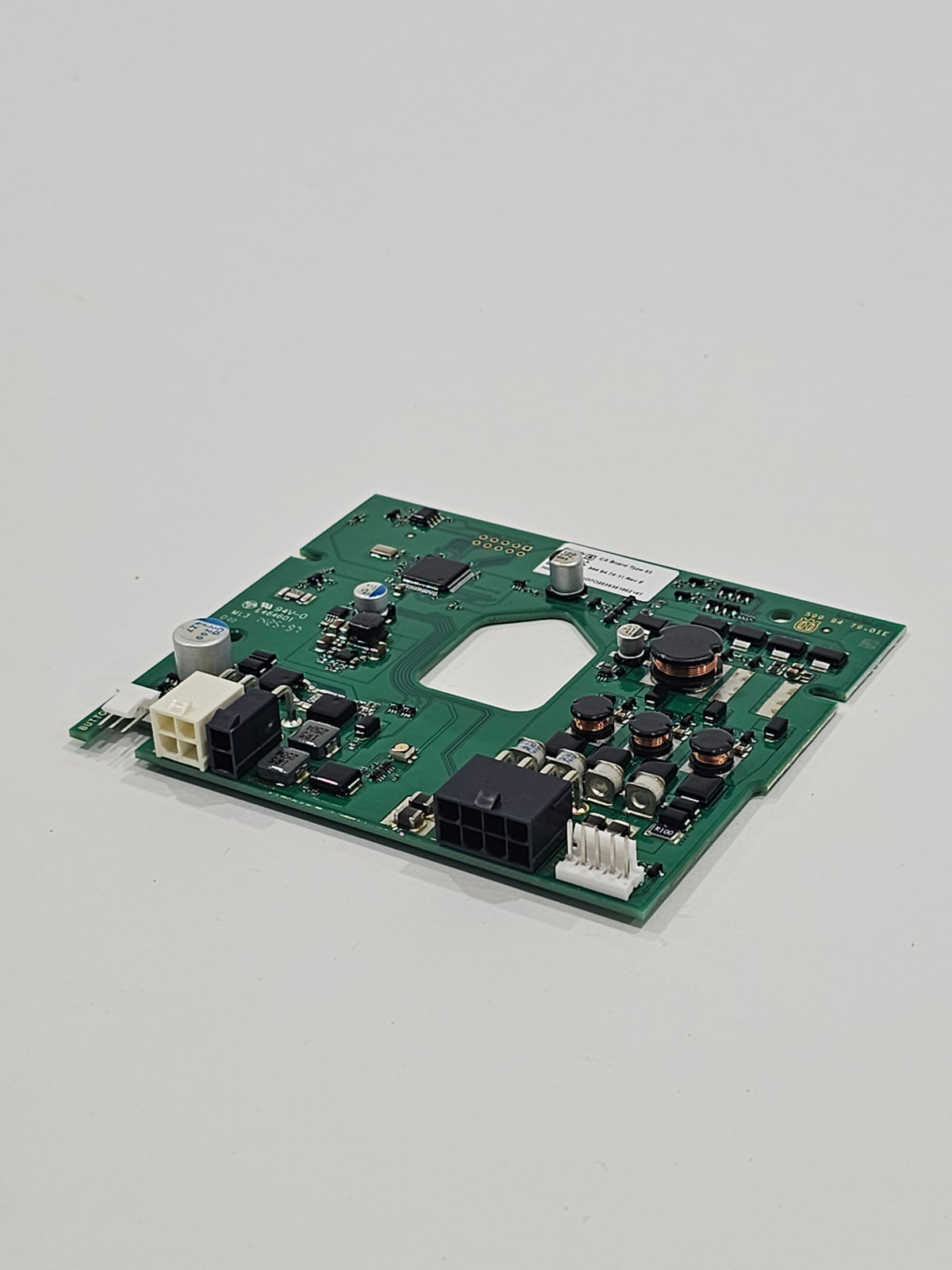

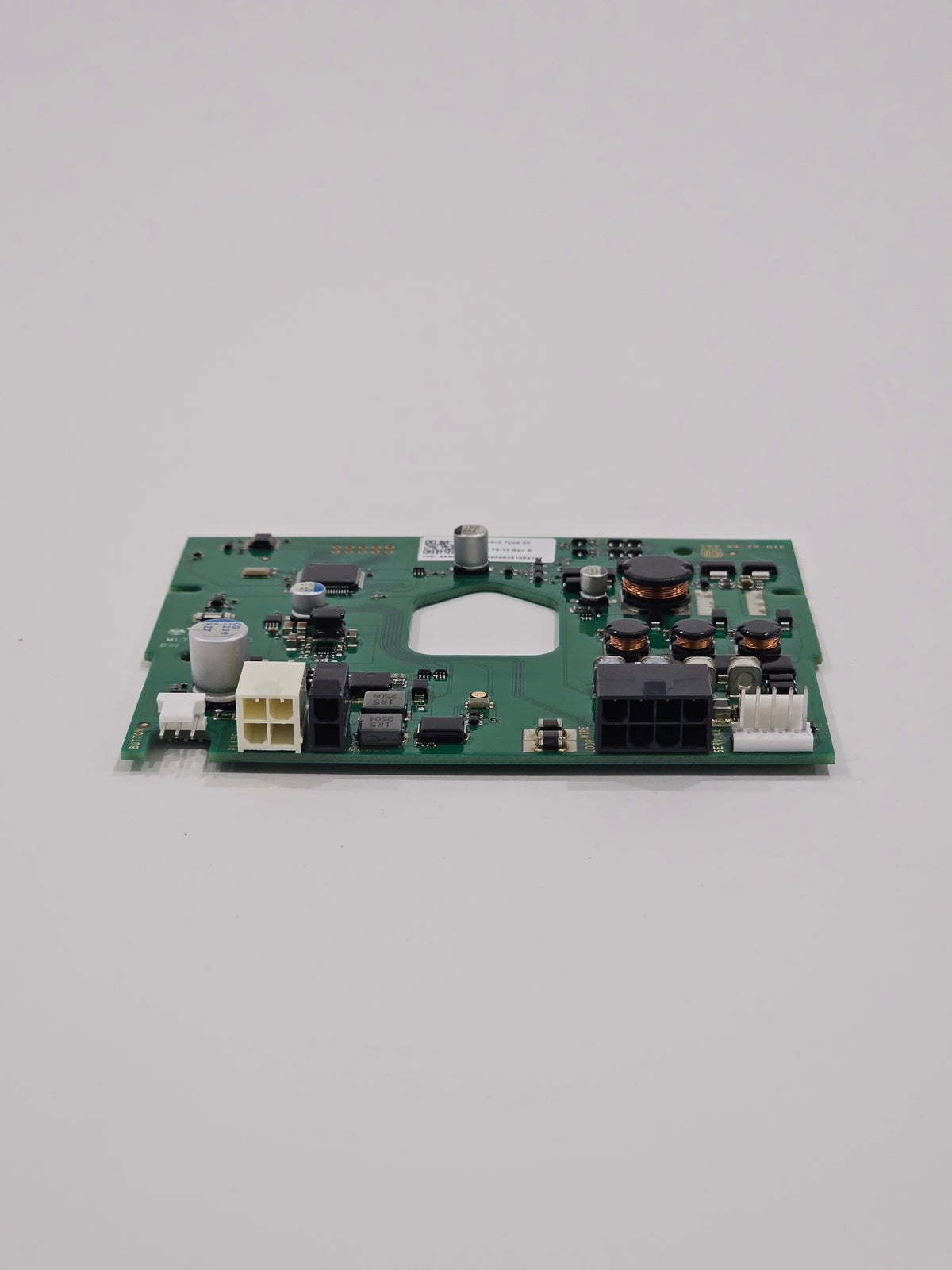

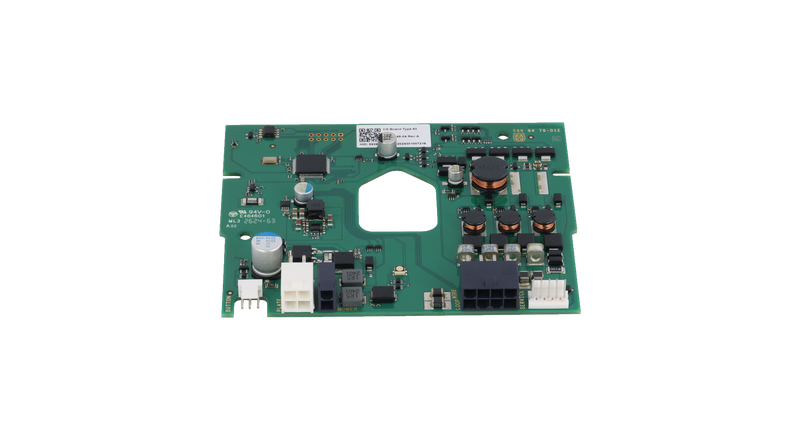

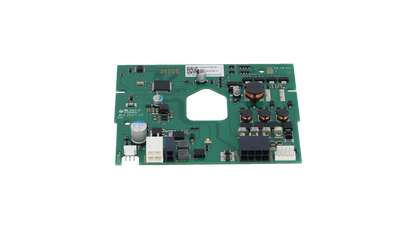

Genuine Husqvarna replacement circuit board assembly for compatible Automower® charging stations. This board forms part of the station’s electronics, including the loop-signal system used by compatible mowers.
Suitable for replacing a diagnosed faulty or damaged charging station board without replacing the complete station.
Common Reasons for Replacement
Confirmed electronic failure: A persistent solid red station light can indicate a faulty circuit board, although the power supply must also be checked.
Loop-signal fault traced to the board: On boundary-wire installations, replacement may be required when “No loop signal” persists after the wires, connections and power supply have been tested.
Storm damage: Lightning or heavy rain can damage charging station electronics. Replace the board if inspection confirms it has been affected.
These symptoms do not confirm a circuit board fault on their own. Diagnosis before replacement helps avoid purchasing an unnecessary part.
Compatible Husqvarna Automower Models
Newer AWD models
Automower® 535 AWD EPOS®
Automower® 435X AWD NERA
Earlier AWD models
Automower® 535 AWD
Automower® 435X AWD
Commercial models
Automower® 550 — standard boundary-wire model
Automower® 520 — standard boundary-wire model
Earlier residential models
Automower® 450X — standard model
Automower® 440
Automower® 430X — standard model
Automower® 420
Automower® 330X
Automower® 320 — original model
Compatibility depends on the charging station version. Confirm the mower’s product number, serial number and existing board number before ordering. Original 320, 430X and 450X models must not be confused with their NERA counterparts.
Product Specifications
Brand: Husqvarna
Part type: Genuine charging station printed circuit board assembly
Manufacturer part number: 592894504
Formatted part number: 592 89 45-04
Catalogue description: PRINTED CIRCUIT ASSY
Application: Charging station electronics
Supply: One circuit board assembly
EAN: 7333377726406
Previous revision: 592894503 / 592 89 45-03
Quantity: 1 pc
Important Notes
This is a circuit board assembly, not a complete charging station, power supply or wiring kit.
Disconnect the charging station from mains power before servicing. Installation and electrical fault diagnosis should be carried out by a qualified technician.
After replacement, the mower may require a new loop signal or pairing with the charging station. Follow the procedure for your model.
Unsure which board you need? Contact EZPZ Mowing with your mower and charging station details before ordering.
