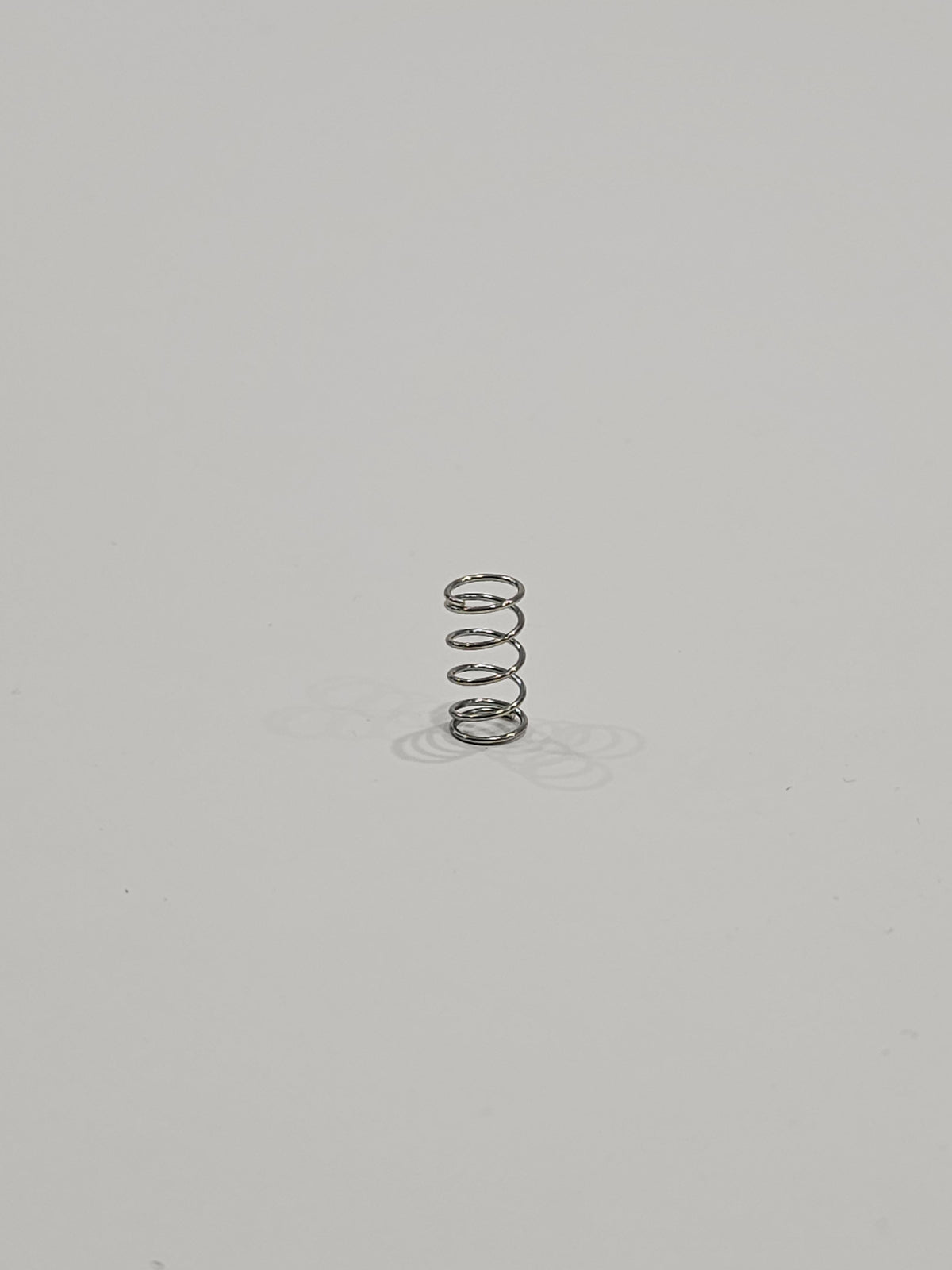

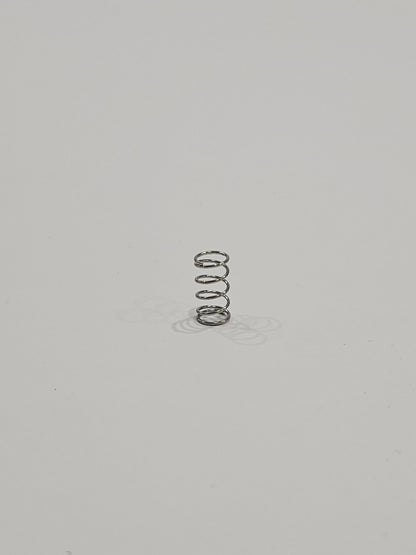

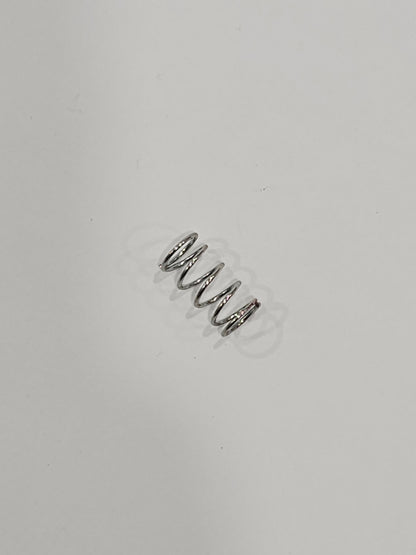

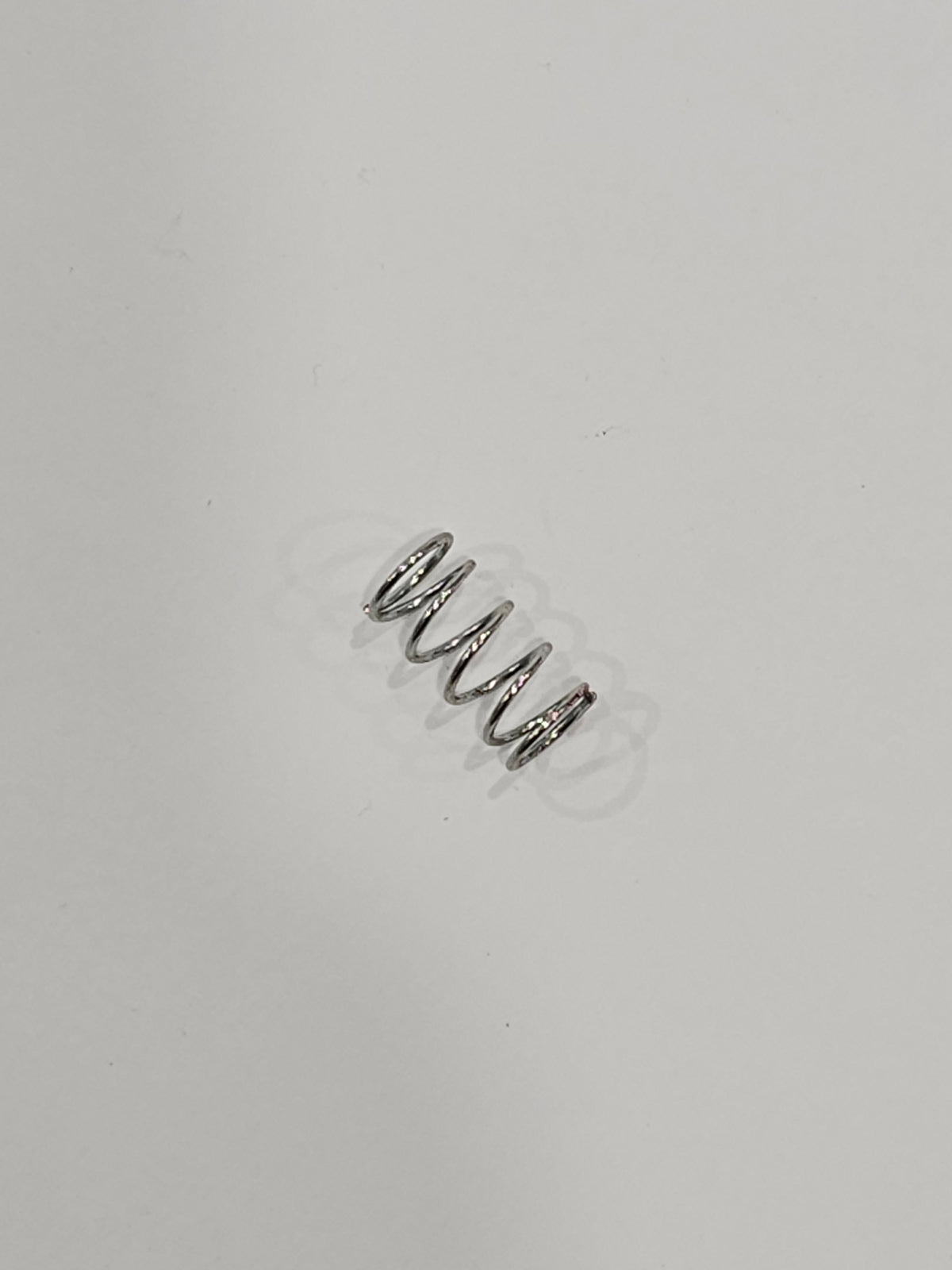

Genuine Husqvarna replacement spring used in button mechanisms on compatible Automower® equipment. Depending on the model, it is fitted beneath the charging station’s cover-release button or within the mower’s STOP-button assembly.
Replace a damaged or missing spring to restore the mechanism’s intended return action.
Common Reasons for Replacement
Broken or deformed spring: Replace if inspection identifies damage.
Insufficient return action: Replacement may be needed if the spring no longer returns the button correctly.
Missing spring: Restore the mechanism if the spring was lost during dismantling or servicing.
A sticking button can also result from dirt, incorrect assembly or damage to surrounding components. Inspect the complete mechanism before replacing the spring.
Compatible Husqvarna Automower Models
Charging station button applications
Automower® 535 AWD EPOS®
Automower® 435X AWD NERA
Automower® 550 EPOS®
Automower® 520 EPOS®
Automower® 535 AWD
Automower® 435X AWD
Automower® 550
Automower® 520
Automower® 415X
Automower® 405X
Automower® 315 Mark II
Automower® 310 Mark II
Automower® 305 — four-wheel model from 2020
Automower® 315X
Automower® 315
Automower® 310
Automower® 450X
Automower® 440
Automower® 430X
Automower® 420
Automower® 330X
Automower® 320
Mower STOP-button applications
Automower® 105
Automower® 308 — earlier three-wheel model
Automower® 305 — earlier three-wheel model
Confirm the installation position against your mower and charging station parts diagrams before ordering.
Product Specifications
Brand: Husqvarna
Part type: Genuine replacement button spring
Manufacturer part number: 574487001
Formatted part number: 574 48 70-01
Official catalogue name: SPRING
Alternative catalogue description: Spring, Stop Button
Pack contents: One spring
EAN: 7391883664872
Important Notes
The same spring has different applications across models. It is not a universal replacement for every Automower® STOP button.
For charging station repairs, disconnect mains power before servicing. For mower repairs, switch the mower off and follow the model’s service procedure.
If servicing a STOP-button mechanism, confirm correct button operation before returning the mower to use.
